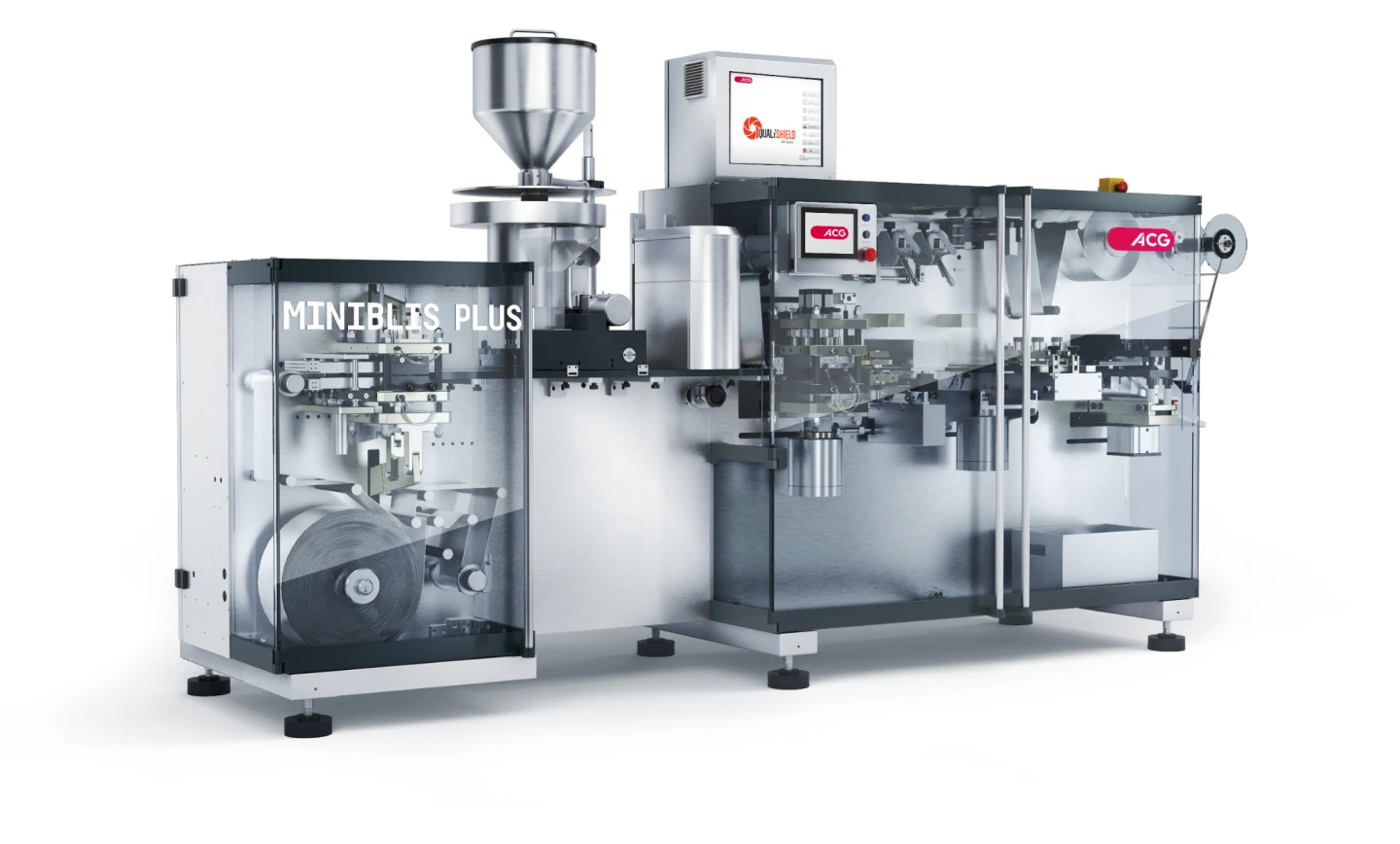

About the MINIBLIS PLUS
ACG’s MINIBLIS PLUS is a fully versatile flat-forming, flat-sealing intermittent-motion machine capable of packaging sensitive products in all forms of blister packs in short-run and small production batches. It supports the production of all configurations of blisters, including thermoforming films and cold-form foils.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
| Features | Benefits | |
|---|---|---|
Larger feeding area |
 |
Capable of multi-feeding different products |
Nitrogen-purging capability |
|
Facilitates handling of extremely moisture-sensitive and hygroscopic products |
Handles thermoform and cold-form applications |
|
Versatile and adaptable to a wide range of R&D set-ups |
Compact footprint |
|
Higher output per square metre |
Low power consumption |
|
Low total-cost-of-ownership |
Interactive human-machine interface (HMI) and IPC |
|
User-friendly controls |
Capable of integrating with cartoning machines |
|
Hassle-free integration with packaging line |
Features & Benefits
Larger feeding area
Capable of multi-feeding different products
Nitrogen-purging capability
Facilitates handling of extremely moisture-sensitive and hygroscopic products
Handles thermoform and cold-form applications
Versatile and adaptable to a wide range of R&D set-ups
Compact footprint
Higher output per square metre
Low power consumption
Low total-cost-of-ownership
Interactive human-machine interface (HMI) and IPC
User-friendly controls
Capable of integrating with cartoning machines
Hassle-free integration with packaging line
Technical specification
| Forming cycle | Thermoforming | Up to 25 cycles/min |
| Cold-forming | Up to 20 cycles/min | |
| Forming depth | Thermoforming | Up to 12 mm |
| Cold-forming | Up to 9 mm | |
| Maximum forming area | 156 mm x 96 mm | |
| Forming materials | PVC, PVC/PVdC, Triplex (PVC/PE/PVdC), cold-form foil (Alu) | |
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) | |
