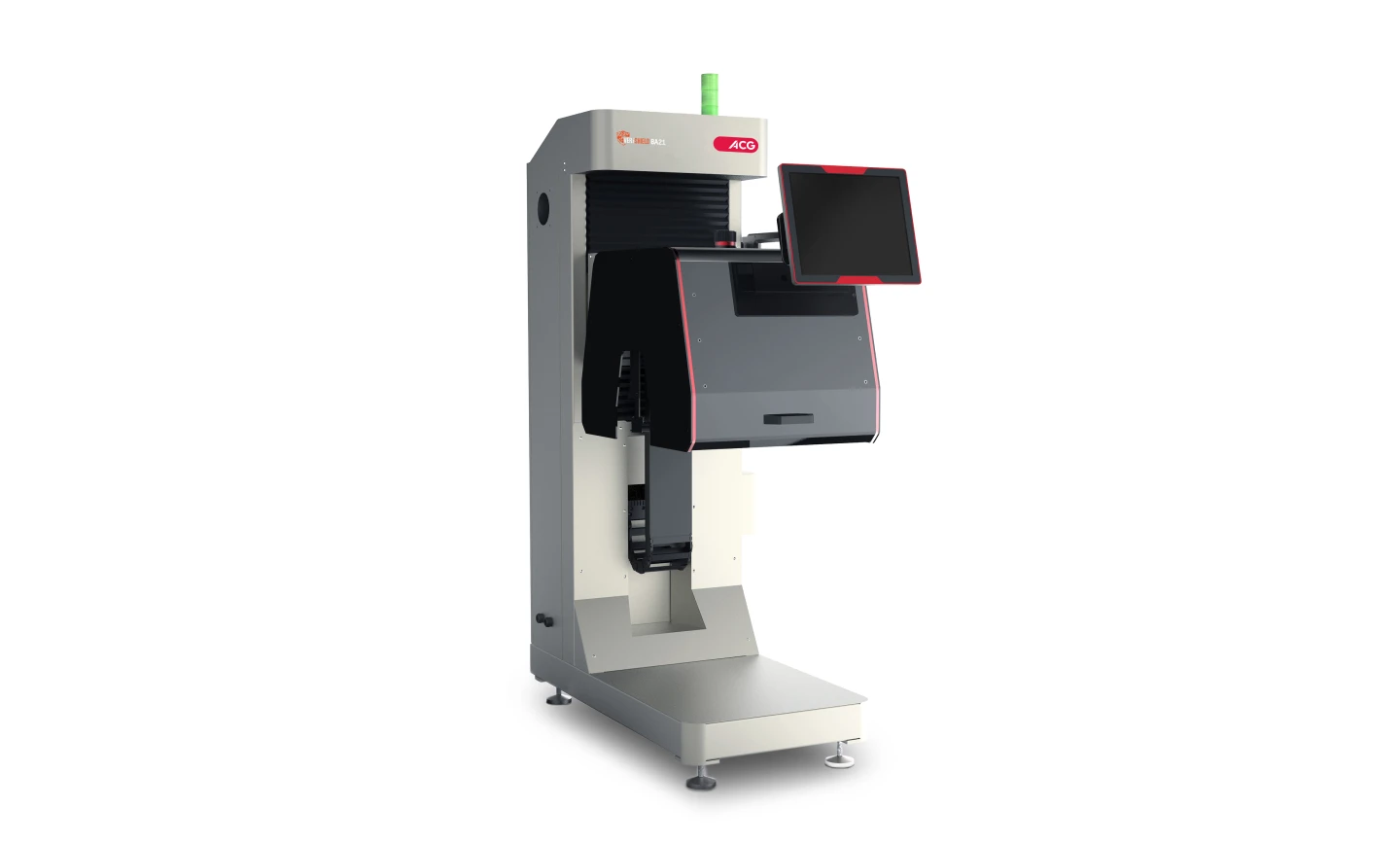

About the VERISHIELD BA21

VERISHIELD BA series enables the seamless tracking of products from production to distribution. It has been designed to efficiently manage and track the movement of individual bottles within larger packaging units by creating a hierarchical relationship between individual bottles and their respective packaging units.

VERISHIELD BA21 is an intermediate helper code referencing unit with top-sert helper code referencing functionality for aggregating bottles. Equipped with side and top cameras, it performs label printing for aggregated units, and verifies printed barcodes using a handheld scanner with an operator-friendly interface. It is compatible with shrink wrap bundles of plastic or PET bottles with the bottom reference code. Additionally, this system is also suitable for shrink-wrapped carton bundles.

Functionality

Top-sert helper code referencing

Features Benefits

Performs side and top barcode scanning

High-speed referencing unit to cope up with production requirements

Operator-friendly interface

Easy to operate and maintain

Compact multifunctional modular design with plug-and-play capability

cGMP design and easy to integrate with packaging line conveyor

EU Annex 11 and FDA  21 CFR Part 11 compliant

A regulatory-compliant, audit-friendly system

Features & Benefits

Performs side and top barcode scanning

High-speed referencing unit to cope up with production requirements

Operator-friendly interface

Easy to operate and maintain

Compact multifunctional modular design with plug-and-play capability

cGMP design and easy to integrate with packaging line conveyor

EU Annex 11 and FDA  21 CFR Part 11 compliant

A regulatory-compliant, audit-friendly system

Technical specifications

Machine dimensionsLength660 mm
Width1,350 mm
Height2,000 mm
Maximum throughput

120 products/min

Rejection system

Encoder based rejection system with pneumatic cylinder and rejection bin

Interlock support

Rejection verification and rejection bin

Also Available In

Model Maximum throughput
VERISHIELD BA21

Top-sert

VERISHIELD BA31

Bottom print
