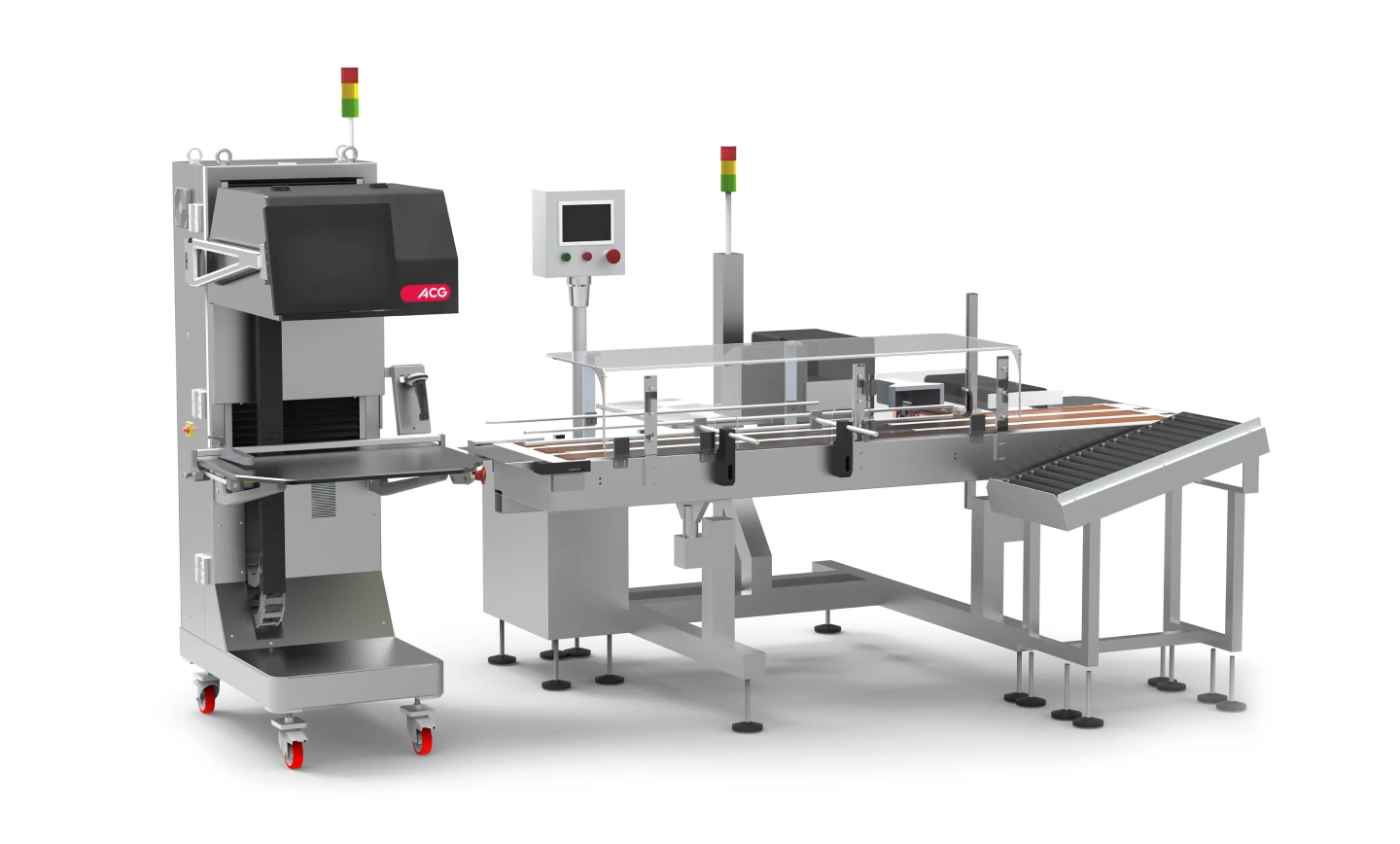

About the VERISHIELD CA32
Embodying a world-class cGMP industrial design, the VERISHIELD CA series makes your carton and bottle aggregation process a whole lot faster and easier.
VERISHIELD CA32 is an intermediate aggregation system. Equipped with an automated camera and scanning system along with label printer, VERISHIELD CA32 performs aggregation, inspection, batch coding, and verification. It automatically prints and places stickers on the shipper box and also generates production reports under various classifications like printed, commissioned, or damaged specimens.
Functionality
Intermediate aggregation with print & apply
| Features | Benefits | |
|---|---|---|
Decodes barcodes (GS1 datamatrix or GS1 128 barcode), data verification in printed barcode |
 |
Capable of decoding multiple 2D codes |
Supports track and trace regulations of multiple countries |
|
A single machine that fulfils diverse requirements pertaining to different regulations |
Autofocus for different bottle/carton/shipper sizes through distance invariant imaging technology (DIIT) |
|
Makes automatic multilayer adjustments specific to the packaging operation process |
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification |
|
A regulatory-compliant, audit-friendly system |
Features & Benefits
Decodes barcodes (GS1 datamatrix or GS1 128 barcode), data verification in printed barcode
Capable of decoding multiple 2D codes
Supports track and trace regulations of multiple countries
A single machine that fulfils diverse requirements pertaining to different regulations
Autofocus for different bottle/carton/shipper sizes through distance invariant imaging technology (DIIT)
Makes automatic multilayer adjustments specific to the packaging operation process
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification
A regulatory-compliant, audit-friendly system
Technical specification
| Machine dimensions | Length | 3,400 mm |
| Width | 1,850 mm | |
| Height | 2,100 mm | |
| Maximum shipper height | 300 mm | |
| Maximum throughput | 4 – 5 labels/min | |
| Rejection mechanism | Online pneumatic rejection | |
