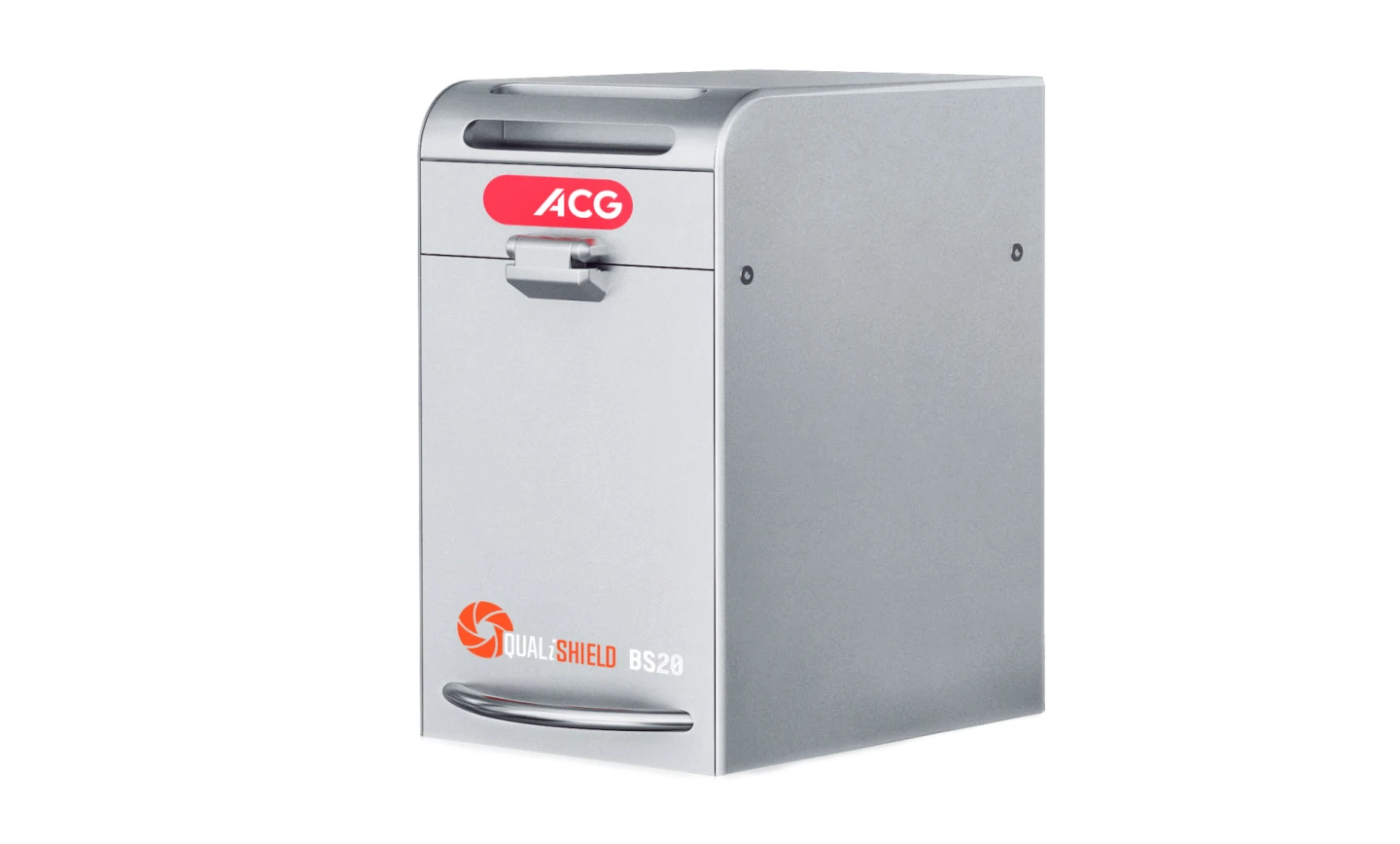

About the QUALISHIELD BS series
The QUALISHIELD BS series includes our high-tech AI-powered blister inspection systems, which integrate seamlessly with various blister-packaging machines. It's designed to detect the full range of potential product defects in blister packs to ensure you meet stringent quality standards. The QUALISHIELD BS series also supports the integration of multiple cameras in a single controller, plus an additional camera for barcode, pharmacode or batch-detail inspection.
| Features | Benefits | |
|---|---|---|
Advanced AI/ML capabilities that help in the automatic pocket detection within the field of view (FOV) and threshold range detection |
 |
Significantly lower ‘teaching’ time |
User-friendly GUI with multiple language support |
|
Easy to access and user-friendly |
Categorised representation of rejection quantities |
|
Summarises large datasets in accessible visual formats |
Configurable user rights and 21 CFR part 11-compliant |
|
A regulatory-compliant, audit-friendly system |
Plug-and-play installation |
|
Quick and error-free installation |
Features & Benefits
Advanced AI/ML capabilities that help in the automatic pocket detection within the field of view (FOV) and threshold range detection
Significantly lower ‘teaching’ time
User-friendly GUI with multiple language support
Easy to access and user-friendly
Categorised representation of rejection quantities
Summarises large datasets in accessible visual formats
Configurable user rights and 21 CFR part 11-compliant
A regulatory-compliant, audit-friendly system
Plug-and-play installation
Quick and error-free installation
Technical specifications
| FOV (Field of view) | 240mm x 150mm |
| Maximum speed | 200 inspections/min |
| Product types inspected | Single and multi-coloured tablets, single and multi-coloured capsules, multi-products, printed capsules (single and multi-colour), printed tablets, soft gelatin capsules |
| Base foil types inspected | Clear PVC, opaque PVC, coloured PVC, aluminium foils |
| Defects detected | Crushed product, cracked product, orientation |
