VeriShield CS17 ACG VeriShield CS17 mobile banner

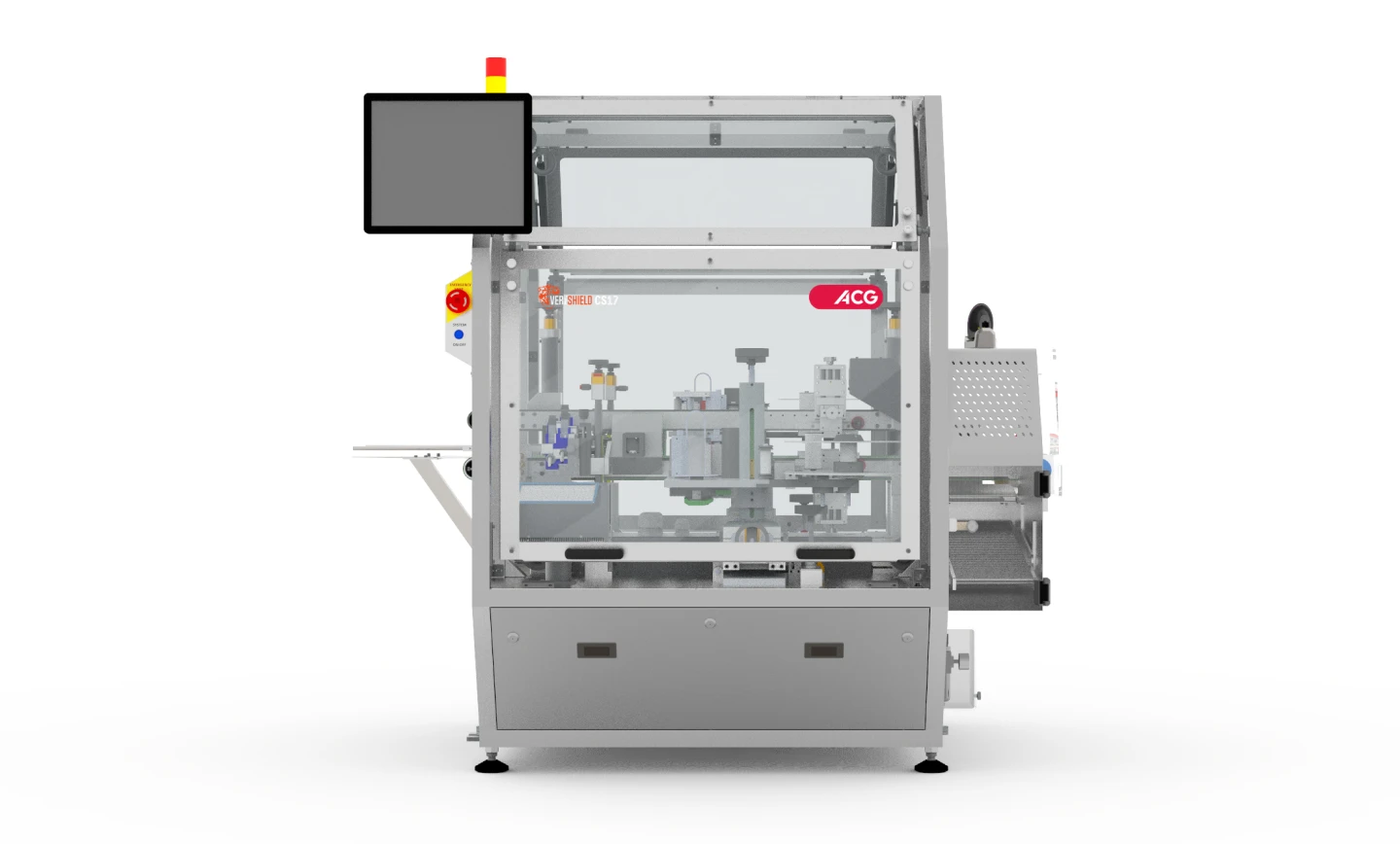

About the VERISHIELD CS17

The CS series consists of a range of accurate and reliable carton serialisation systems. Easy to use, they can serialise cartons of various sizes, from small blister packs to large shipping containers. They comply with regulatory requirements all over the world and are suitable for providing a high level of security and traceability of pharmaceutical products.

VERISHIELD CS17 is a carton printing, inspection, and rejection system with tamper evident labelling capability that complies with global regulations. The system is equipped with serialisation printing, advanced vision inspection technology and tamper evident label application capabilities with an operator-friendly interface.

Functionality

Online print inspect and reject with tamper-evident labelling

Features Benefits

High-speed machine with a compact design

Requires minimal floor space and time

Ergonomic, aesthetic design with operator-friendly interface

Easy to operate and maintain the system

EU FMD regulation compliant

Ideal for products manufactured in or exported to European countries

EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification

A regulatory-compliant, audit-friendly system

Features & Benefits

High-speed machine with a compact design

Requires minimal floor space and time

Ergonomic, aesthetic design with operator-friendly interface

Easy to operate and maintain the system

EU FMD regulation compliant

Ideal for products manufactured in or exported to European countries

EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification

A regulatory-compliant, audit-friendly system

Technical specifications

Machine dimensionsLength1,400 mm
Width1,660 mm
Height1,800±65 mm
Maximum throughput

200 cartons/min (for minimum carton size)

Carton size rangeMinLength65 mm
Width30mm
Height15 mm
MaxLength200 mm
Width150mm
Height90 mm
Rejection system

Combined rejection bin with rejection verification functionality

Interlock and safety

Emergency stop button
Low air pressure alarm
Labeller-low interlock
Interlock for low and high pneumatic air pressure
Acrylic door interlock

Also Available In

Model Functionality
VERISHIELD CS11

Online print, inspect and reject

VERISHIELD CS12

Offline print, inspect and reject

VERISHIELD CS14

Online print, inspect and reject with check-weigher

VERISHIELD CS16

Online print, inspect and reject with tamper-evident labelling

VERISHIELD CS17

Online print inspect and reject with tamper-evident labelling

VERISHIELD CS19

Online print and inspection
