About the QUALISHIELD CV 30
The QUALISHIELD CV series is a high-speed, high-resolution, multi-colour, camera-based solution for inspection of a variety of data, including barcodes, pharmacodes, 2D codes, batch details, and much more – on inspection media such as cartons, labels, leaflets, foils, tubes, and many others. You can install it on any carton- or blister-packing machine, and it’s retrofittable to a wide range of bottling, cartoning and manual packaging lines. The CV series can be integrated with various types of cameras, based on different needs.

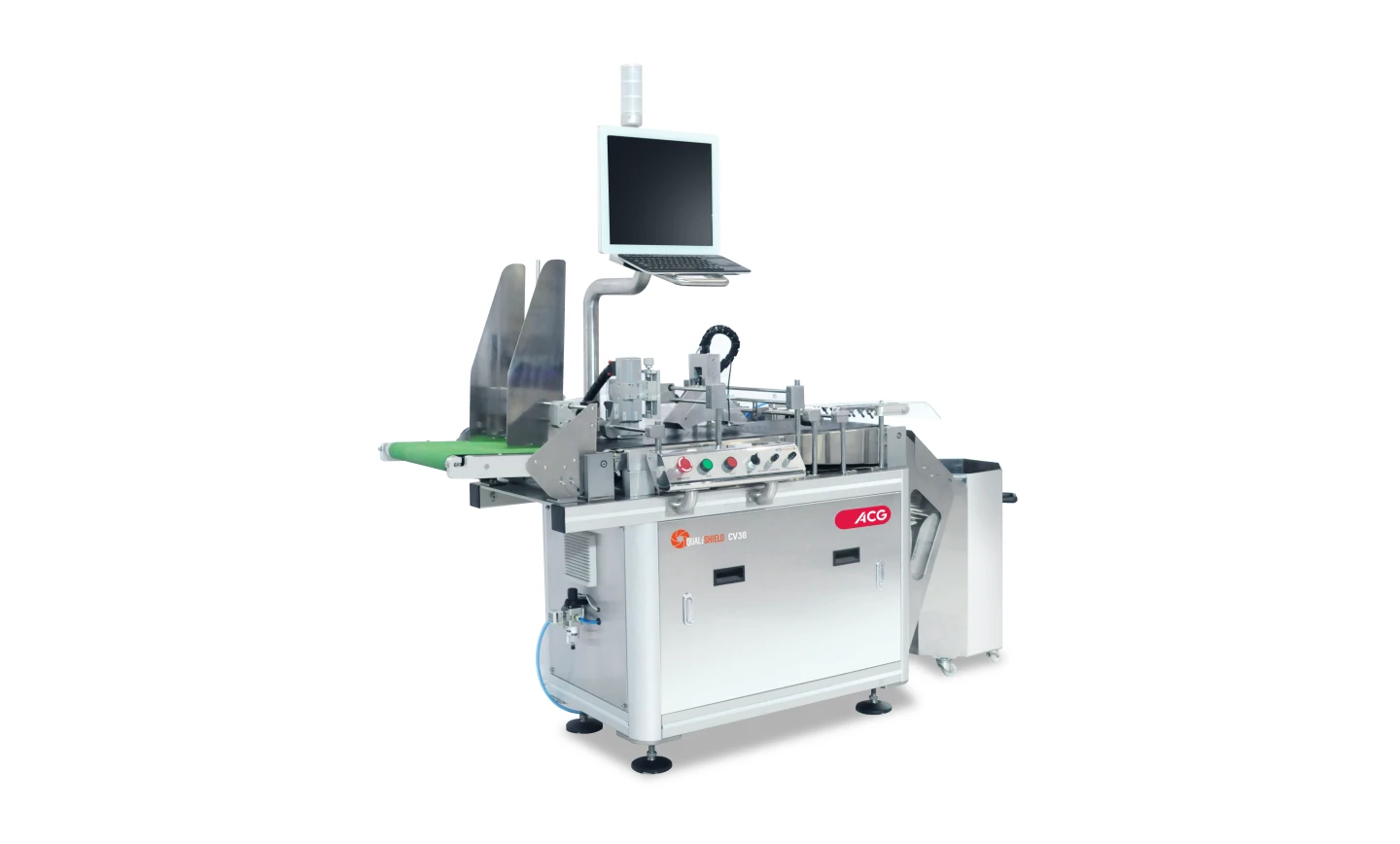

QUALISHIELD CV30 is an offline carton conveying system with an integrated printer and camera system. It is an ideal solution for offline carton code printing and inspection where products are stacked in a feeder mechanism and passed one-by-one via conveyor belt for further printing and inspection.
Applications
Unfolded carton print inspection and online rejection system
| Features | Benefits | |
|---|---|---|
Speeds up to 200 cartons |
 |
Compatible with all cartoning machines |
Encoder-based rejection system with lock-and-key rejection bin |
|
Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations |
Variable speed control |
|
Set conveyor speeds manually according to output requirements |
Compliant with 21 CFR Part 11, and CE certified |
|
A regulatory-compliant, audit-friendly system for greater peace of mind |
Features & Benefits
Speeds up to 200 cartons
Compatible with all cartoning machines
Encoder-based rejection system with lock-and-key rejection bin
Reduces the need to change speeds manually, as parameters are adjusted automatically to speed variations
Variable speed control
Set conveyor speeds manually according to output requirements
Compliant with 21 CFR Part 11, and CE certified
A regulatory-compliant, audit-friendly system for greater peace of mind
Technical specifications
| Machine dimensions | Length | 1568mm | |
| Width | 936mm | ||
| Height | 1828±65mm | ||
| Speed | 200 cartons/min | ||
| Cameras | 1 | ||
| Supported carton sizes | Minimum | Length | 60mm |
| Width | 60mm | ||
| Maximum | Length | 300mm | |
| Width | 200mm | ||
