BACK TO ALL PRODUCTSAbout the QUALISHIELD CV52
The QUALISHIELD CV series is a high-speed, high-resolution, multi-colour, camera-based solution for inspection of a variety of data, including barcodes, pharmacodes, 2D codes, batch details, and much more – on inspection media such as cartons, labels, leaflets, foils, tubes, and many others. You can install it on any carton- or blister-packing machine, and it’s retrofittable to a wide range of bottling, cartoning and manual packaging lines. The CV series can be integrated with various types of cameras, based on different needs.

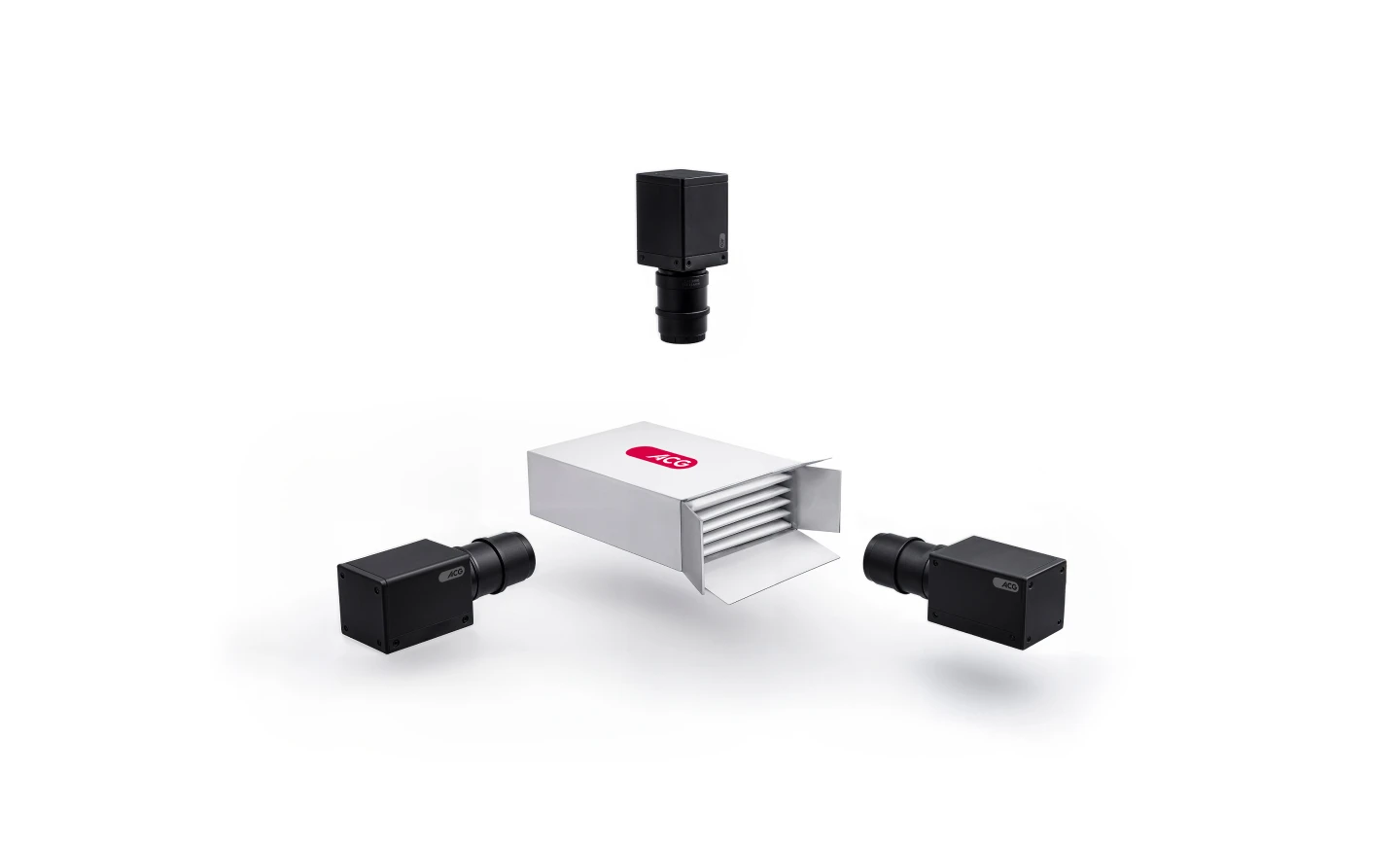

QUALISHIELD CV52 is an online camera-based inspection system you can mount on any labelling, cartoning or blister-packaging machine. It accurately and reliably captures details such as batch and expiry, 1D barcodes, 2D datamatrix codes, pharma codes – on inspection media including cartons, labels, foils, leaflets, tubes, and many others.
Applications
Pharmacode, barcode and OCR/OCV inspection on carton, leaflet, and booklet
| Features | Benefits | |
|---|---|---|
| Inspects contents of cartons, labels, foils, leaflets and tubes using a modular software architecture | One hardware and software solution for multiple uses in a single setup | |
| Supports printing in continuous inkjet, thermal inkjet, hot-stamping and thermal transfer overprinters (TTOs) | Compatibility with a wide range of industrial printers | |
| A plug-and-play installation that supports all types of PLC rejection mechanism protocols | Accurately and reliably captures details on labels such as batch and expiry, 1D barcodes, 2D datamatrix codes, pharmacodes | |
| Fast and easy plug-and-play installation | Can be integrated with continuous or intermittent machines |
Features & Benefits
Technical specifications
| FOV (Field of view) | 60mm x 40mm |
| Number of cameras | 3 |
| Products that can be inspected | Carton, leaflet, label, vial |
| Maximum speed* | 300 products/min |
*Speed can vary according to the number of camera configurations, image saves, camera configurations (one or more), and product size. | |
