About the QUALISHIELD CV53

The QUALISHIELD CV series is a high-speed, high-resolution, multi-colour, camera-based solution for inspection of a variety of data, including barcodes, pharmacodes, 2D codes, batch details, and much more – on inspection media such as cartons, labels, leaflets, foils, tubes, and many others. You can install it on any carton- or blister-packing machine, and it’s retrofittable to a wide range of bottling, cartoning and manual packaging lines. The CV series can be integrated with various types of cameras, based on different needs.

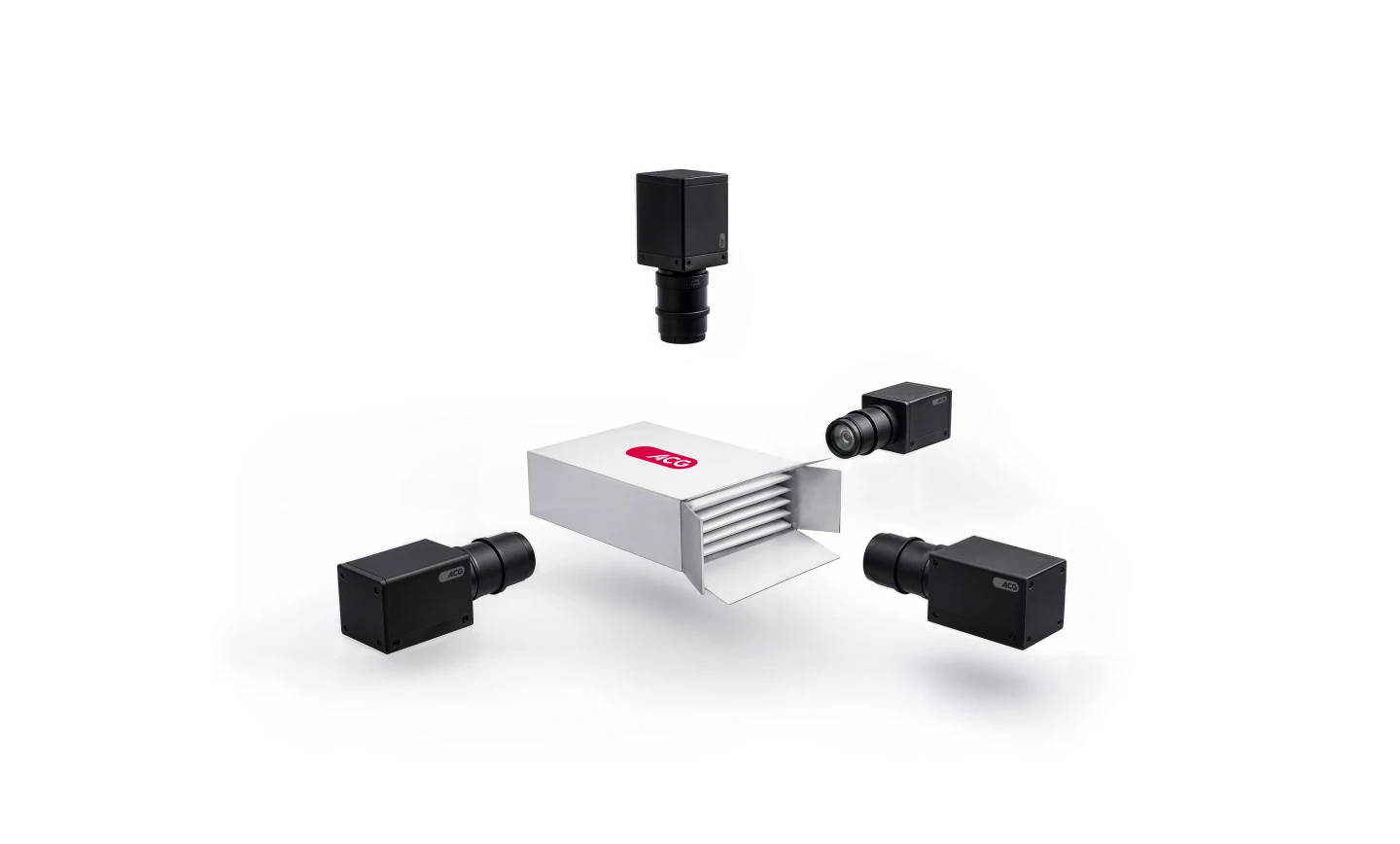

QUALISHIELD CV53 is an online camera-based inspection system you can mount on any labelling, cartoning or blister-packaging machine. It accurately and reliably captures details such as batch and expiry, 1D barcodes, 2D datamatrix codes, pharma codes – on inspection media including cartons, labels, foils, leaflets, tubes, and many others.

Applications

Pharmacode, barcode and OCR/OCV inspection on carton, leaflet, and booklet

Features Benefits
Inspects contents of cartons, labels, foils, leaflets and tubes using a modular software architecture One hardware and software solution for multiple uses, in a single setup
Supports printing in continuous inkjet, thermal inkjet, hot-stamping and thermal transfer overprinters (TTOs) Compatibility with a wide range of industrial printers
A plug-and-play installation that supports all types of PLC rejection mechanism protocols Accurately and reliably captures details on labels such as batch and expiry, 1D barcodes, 2D datamatrix codes, pharmacodes
Fast and easy plug-and-play installation Can be integrated with continuous or intermittent machines
Features & Benefits
Inspects contents of cartons, labels, foils, leaflets and tubes using a modular software architecture One hardware and software solution for multiple uses, in a single setup
Supports printing in continuous inkjet, thermal inkjet, hot-stamping and thermal transfer overprinters (TTOs) Compatibility with a wide range of industrial printers
A plug-and-play installation that supports all types of PLC rejection mechanism protocols Accurately and reliably captures details on labels such as batch and expiry, 1D barcodes, 2D datamatrix codes, pharmacodes
Fast and easy plug-and-play installation Can be integrated with continuous or intermittent machines

Technical specifications

FOV (Field of view)60mm x 40mm
Number of cameras4
Products that can be inspectedCarton, leaflet, label, vial
Maximum speed*200 products/min



*Speed can vary according to the number of camera configurations, image saves, camera configurations (one or more), and product size.
