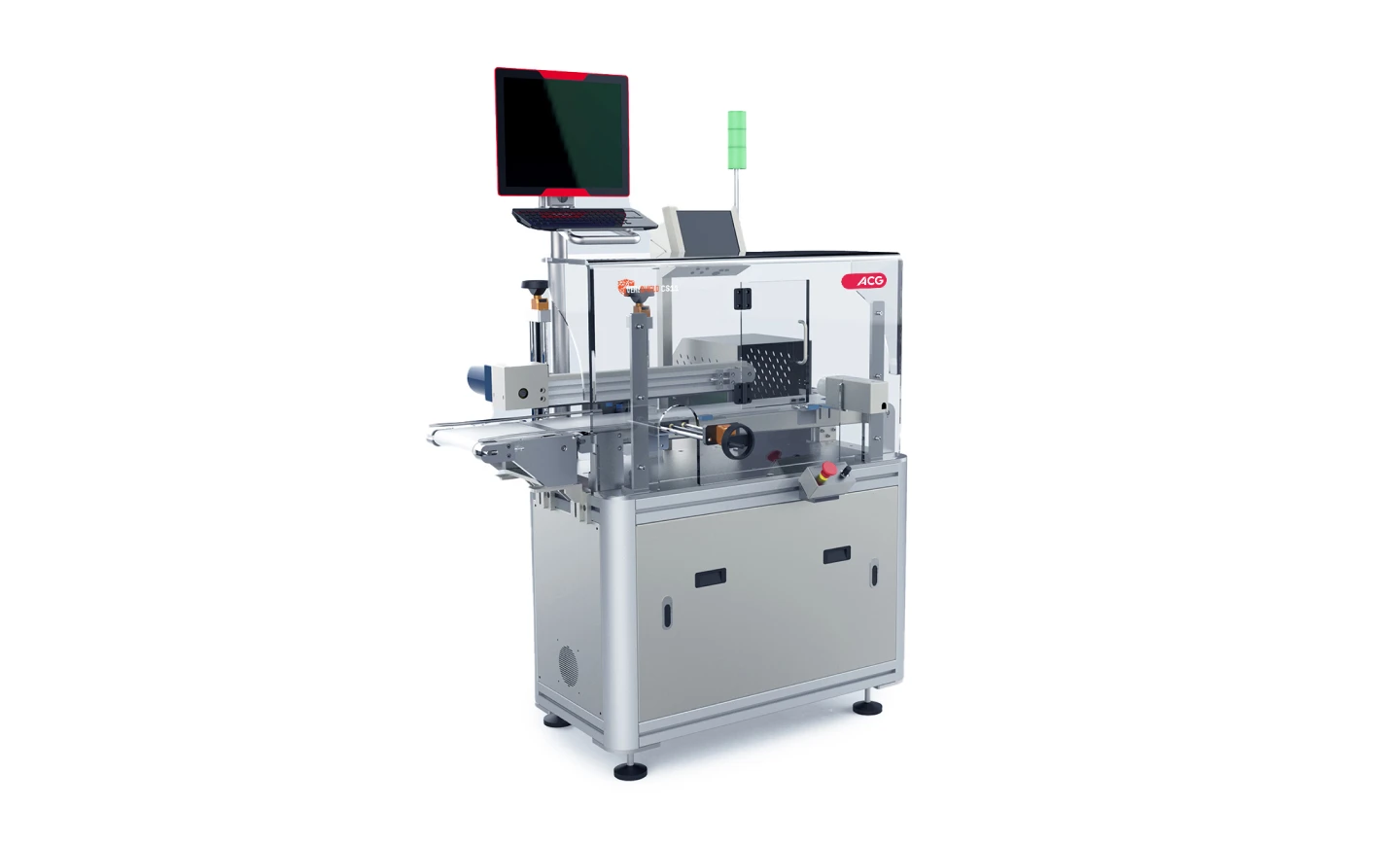

About the VERISHIELD CS11
The CS series consists of a range of accurate and reliable carton serialisation systems. Easy to use, they can serialise cartons of various sizes, from small blister packs to large shipping containers. They comply with regulatory requirements all over the world and are suitable for providing a high level of security and traceability of pharmaceutical products.
VERISHIELD CS11 is our carton serialisation system for online printing, inspection, and rejection of cartons with defective print.
Functionality
Online print, inspect and reject
| Features | Benefits | |
|---|---|---|
Adjustable for different carton dimensions |
 |
Allows quick changeover between multi-carton sizes |
Equipped with variable speed control |
|
Flexibility to adjust speed as per online output requirements |
Supports track & trace regulations of multiple countries
Capable of printing datamatrix code as per regulations |
|
A single machine that fulfils diverse requirements of different regulations |
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification |
|
A regulatory-compliant, audit-friendly system |
Plug-and-play mode |
|
The system can connect seamlessly with cartoners/checkweighers |
Works on serialised and non-serialised modes of operation |
|
Option to print details on carton based on printing format requirements |
Features & Benefits
Adjustable for different carton dimensions
Allows quick changeover between multi-carton sizes
Equipped with variable speed control
Flexibility to adjust speed as per online output requirements
Supports track & trace regulations of multiple countries
Capable of printing datamatrix code as per regulations
A single machine that fulfils diverse requirements of different regulations
EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification
A regulatory-compliant, audit-friendly system
Plug-and-play mode
The system can connect seamlessly with cartoners/checkweighers
Works on serialised and non-serialised modes of operation
Option to print details on carton based on printing format requirements
Technical specifications
| Machine dimensions | Length | 1,350mm | |
| Width | 1,060 mm | ||
| Height | 1,990±60 mm | ||
| Maximum throughput | 200 cartons/min (for minimum carton size) | ||
| Carton size range | Min | Length | 65 mm |
| Width | 30 mm | ||
| Height | 15 mm | ||
| Max | Length | 200 mm | |
| Width | 200 mm | ||
| Height | 150 mm | ||
| Maximum carton weight | 500 g | ||
| Printing and verification (serialisation) | 2D Datamatrix and up to 5 lines of human readable fields | ||
| Rejection system | Encoder based rejection system with lock and key rejection bin | ||
| Interlock and safety | Emergency stop | ||
| Report types | Batch-wise report | ||
